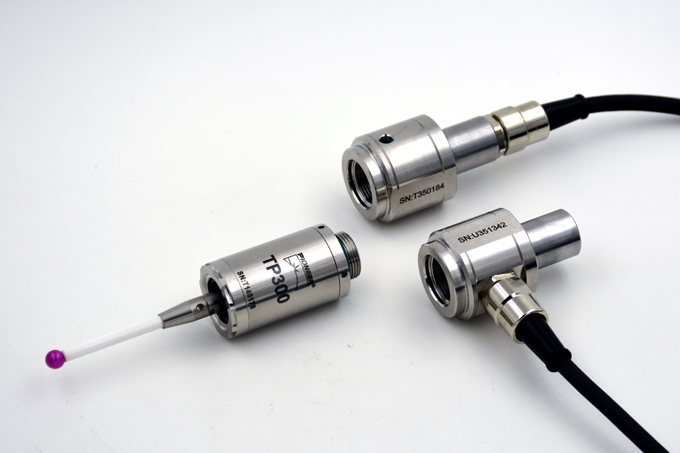

TP300 cable probe system mainly used in various specifications of CNC grinding machines, CNC lathes and specially measuring devices. TP300 cable probe system includes a TP300 trigger probe unit, HPI-A16 (axial outlet) or HPI-R16 (radial outlet) probe shank containing the probe's interface and standard measuring software.

Parameter of CNC TP300 Cable Digitizing Touch Probe

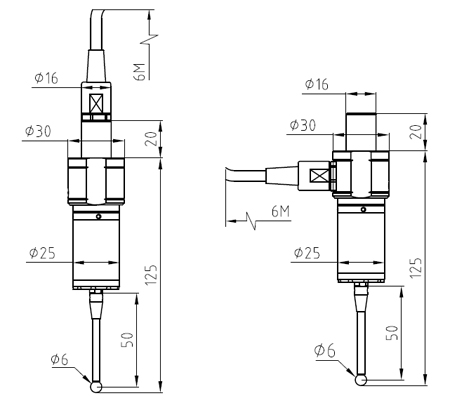

Drawing of CNC TP300 Cable Digitizing Touch Probe

Application of CNC TP300 Cable Digitizing Touch Probe

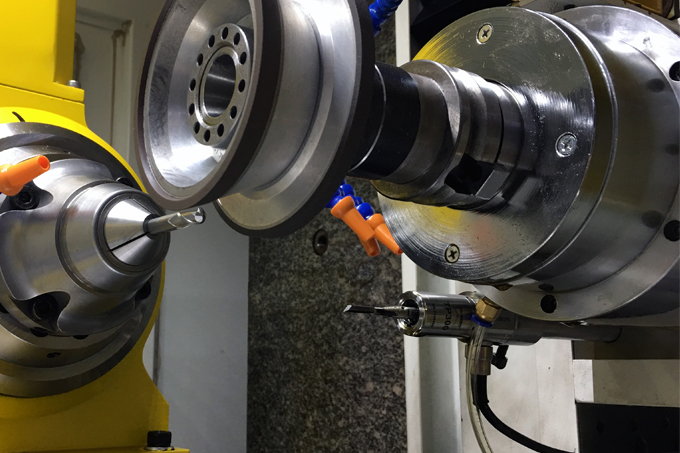

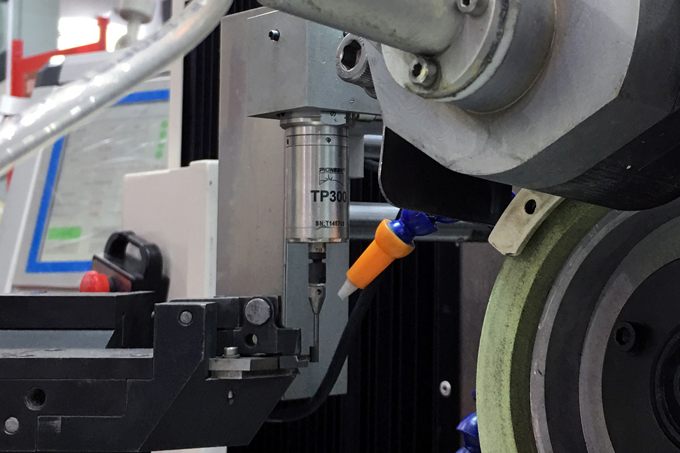

• Monitoring part machining process on gear wheel grinders and sharpeners

• Using in wheel repair lathe machine to measure alloy wheel

• Using with robot machine to set datum point

Technology of CNC TP300 Cable Digitizing Touch Probe

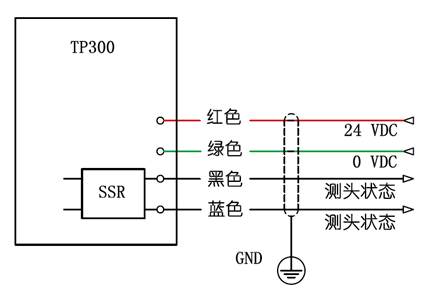

• The signal interface of the probe is integrated inside the probe shank, and the trigger signal is transmitted by cable

• By changing the power supply polarity at the probe interface, the logic state of the output signal can be reversed

• The stylus connector of the probe is protected by double layers of rubber seal

• TP300 size is small, Ideal for use in small workspaces

Video Display of TP300 Cable Probe
