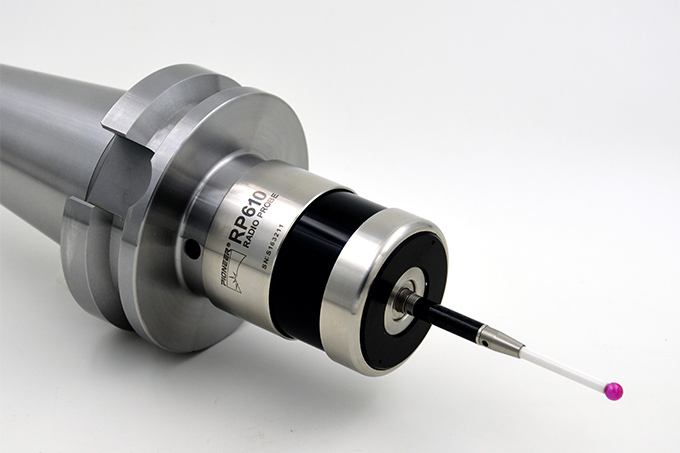

RPS-20M radio probe system contains RP610M touch probe, RSI-20M receiver and standard measuring software. The RP610M is a compact spindle probe with radio signal transmission which offers automated part set-up and in-cycle gauging on machining centers, including 5-axis machines. RPS-20M radio probe system used in various specifications of machine centers, large-scale gantry machine, five-axis CNC machine tools and so on.

Parameter of RPS-20M Radio Probe System

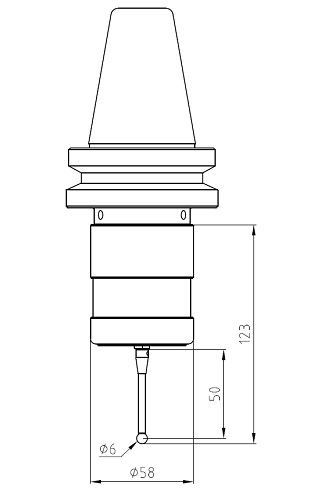

Drawing of RPS-20M Radio Probe System

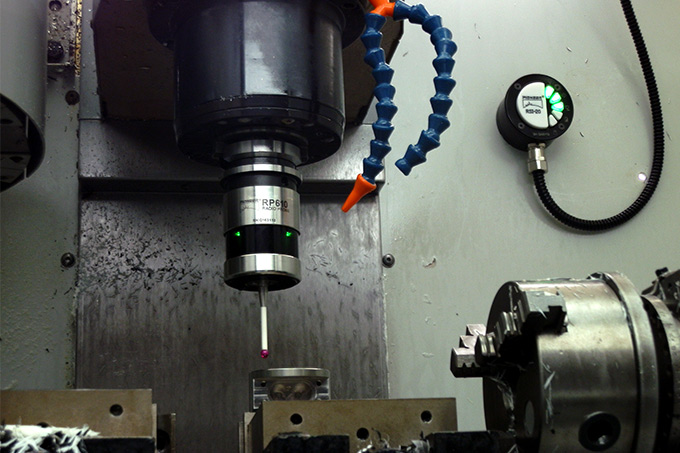

Application of RPS-20M Radio Probe System

• RPS-20M has a transmission distance of up to 14 m, which is suitable for five-axis machining centers and large machine tools equipped with complex fixture components.

• The radio probe transmits signals by radio and can be applied to the measurement of deep cavity workpieces.

• Radio probes are often used on double-head lathes to process large parts such as automobile axles

Technical Characteristics of RPS-20M Radio Probe System

• Probe switch on/off method:：Range on/off、M code on/off;

• Radio code signals are used to transmit information between the probe and the receiver. The time to transmit and to decode a group of signals is less than 1ms;

• The transmission frequency of the radio signal is within 2.4 G-2.483 G, the number of transmission channel is 16;

• Output four kinds of SSR signals to machine control system when probe is in the states of trigger、error、probe batteries low and output pulse;

• The RSI-20 receiver can change its logical state of the output signal by setting;

• The LED lights in the receiver show the working status of the probe system.
